Delphi

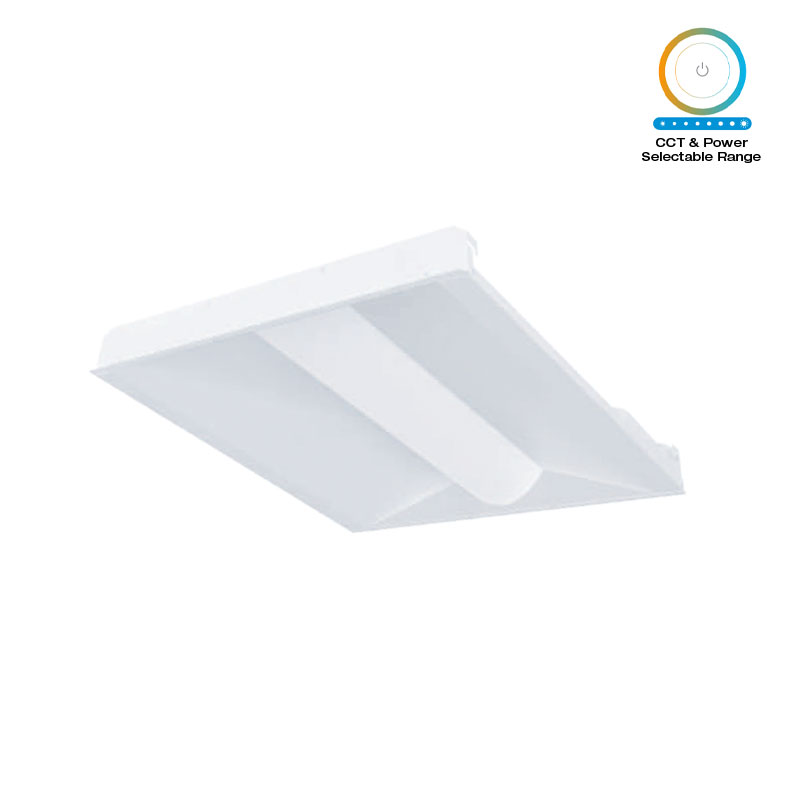

Architectural Troffer 2'x2'
Delphi Architectural Troffer, apart from being an energy efficient lighting solution, also offers excellent lighting control to its users by allowing them to select different CCTs and wattages to meet their varied requirements. This Troffer is available in two different sizes (2' x 2', 2' x 4'), each with a variety of highly efficient lumen packages to suit multiple lighting needs.
PRODUCT FEATURES
• Exceptional efficacy (130 lm/W).
• State-of-the-art technology - incorporates CCT & power selectable options.
• Energy saving technology - saves greater energy over the traditional lighting fixtures.
• High performing luminaire - soft, smooth and uniform light output.
• Suitable for a wide range of applications due to its low profile.
• Highly durable - metal surfaces are painted pre-fabrication with high gloss baked silver matte powder paint for better and long-lasting finish.
Product Details
| Efficacy (lm/W) | 130 lm/W |
| Power (W) |
(2' x 2') 20 W-25 W-30 W |
| CCT (K) | 3500 K - 4000 K- 5000 K |
| CRI | 80+ |
| Voltage | AC 100-277 V 50/60 Hz |
| Beam Angle | 120° |
| Dimming | Continuous Dimming to 10% or below (0-10V) |
| Operating Temperature | -14° F to +122° F |
| IP Rating | IP40 |
| Housing | Aluminum |
Technical Resources
Product Sheet
SKU Details
| Power | SKU Number | CCT | Efficacy | Voltage | Lumen Output | Size | Finish | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 W-25 W-30 W | 662187529301 | 3500 K-4000 K-5000 K | 125 lm/W | 100-277 V | 2500 lm-3125 lm-3750 lm | 2x2 | White | Not Qualified Yet | IK-AT22E-202530-CCT-D | Download | On Request |
| 20 W-25 W-30 W | 662187477305 | 3500 K-4000 K-5000 K | 130 lm/W | 120-277 V | 2500 lm-3125 lm-3750 lm | 2x2 | White | IK-AT22F-202530-CCT-D | IK-AT22F-202530-CCT-D | Download | On Request |
