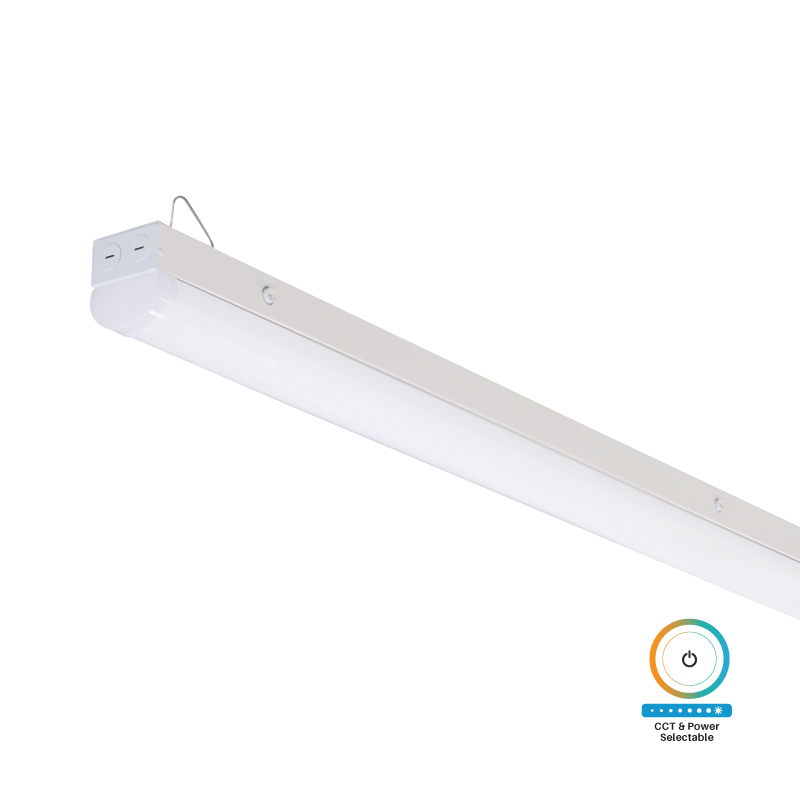

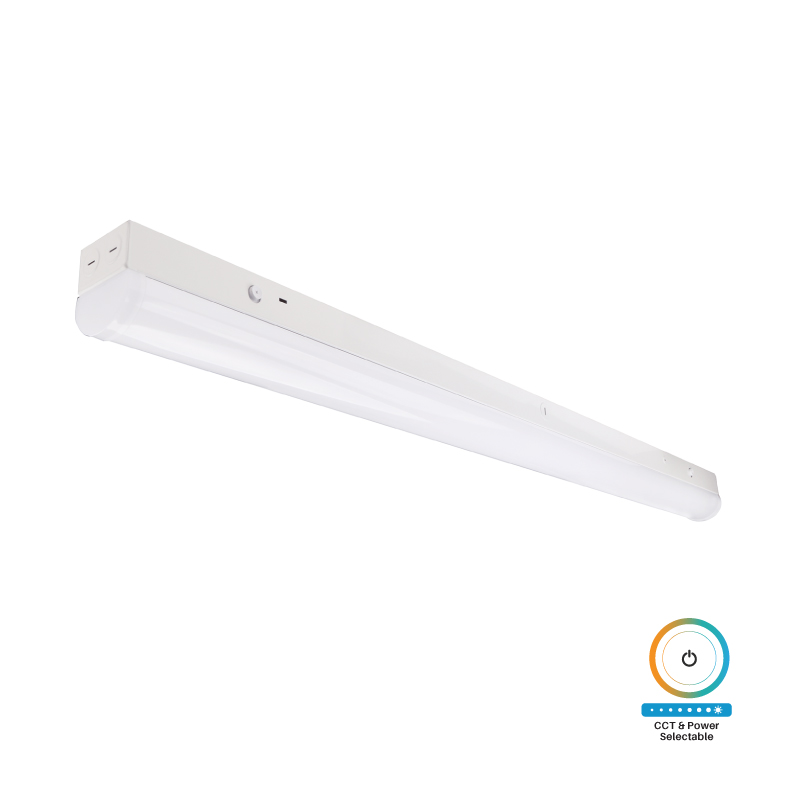

Apex Linear Low Bay

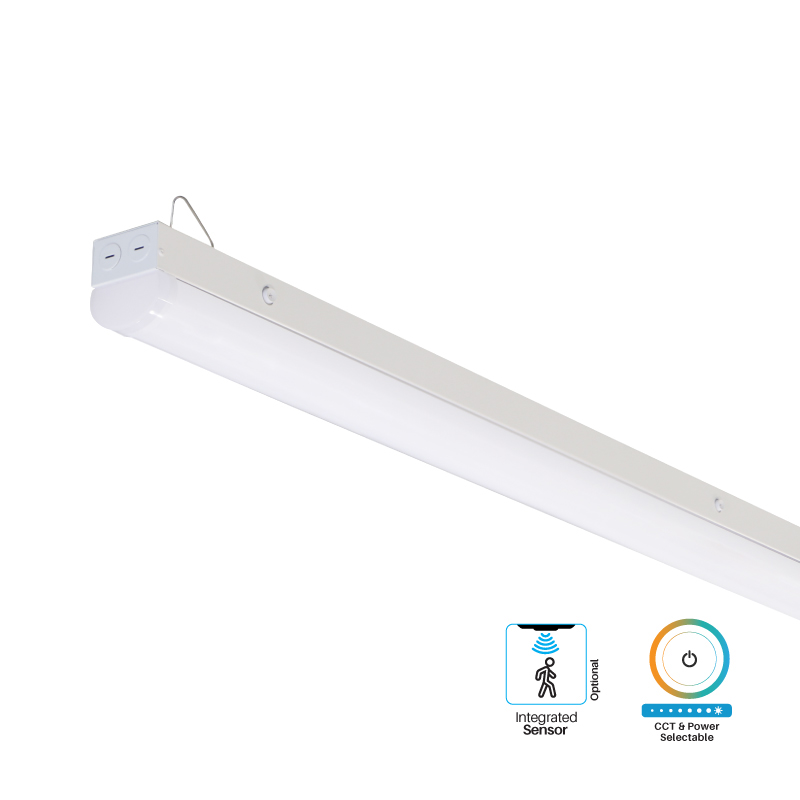

With Integrated Sensor Option
IKIO’s Apex Linear Low Bay comes with CCT and Power selectable capability, making it not only an energy-efficient alternative to traditional lights but also a high-performance commercial lighting solution with better control. Given the flexibility, you can choose this luminaire for a variety of lighting applications while using lesser number of SKUs. Apex is easy to install and has features like high light output, smooth color rendering, dimming options, and even distribution.
PRODUCT FEATURES
- Increased flexibility and ease with IKIO’s CCT Selectable (switch between 3000-4000-5000 K) & Power Selectable (switch between 50-60-70 W) feature.
- High Efficacy (up to 158 lm/W) & 80+ CRI, resulting in crisp, uniform, and flicker-free illumination of the space.
- Ensured longevity with rugged iron housing, polycarbonate lens.
- 0-10 V Seamless Dimming function allowing adjustment of the brightness of lights.
- Easy-to-install Design that supports Quick Screw-in during lighting installations, making upgrades hassle-free.
Product Details
| Efficacy (lm/W) | Up to 156 lm/W |
| Power Selectable (W) |
70 W-60 W- 50 W |
| CCT Selectable (K) | 3000 K - 4000 K - 5000 K |
| CRI | 84-86-83 |
| Voltage | AC 120-277 V 50/60 Hz |
| Sensor Type (Only for Integrated Sensor fixtures) | Daylight Sensor, Occupancy Sensor, Multifunction Sensor |
| Beam Angle | 130° |
| Dimming | 0-10 V Continuous Dimming (Min. Dimming Range <10%) |
| Operating Temperature | -4° F to +113° F |
| IP Rating | IP4X |
| Housing | Iron + PC Lens (Round) |
Technical Resources
Product Sheet
LM79 Report
Installation Instructions
SKU Details
| Max Power | SKU Number | Efficacy | CCT (Selectable) | Voltage | Lumen Output | Integrated Sensor | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|
| 72.4 W | 662187482798 | 139.87 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 6993.5 lm-8392.2 lm-10123 lm | Yes | IK-LLB08-70W-30/40/50K-MV-WH-S | IK-LLB08-70W-30/40/50K-MV | Download | Download |
| 72.4 W | 662187482781 | 139.87 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 6993.5 lm-8392.2 lm-10123 lm | No | IK-LLB08-70W-30/40/50K-MV-WH | IK-LLB08-70W-30/40/50K-MV | Download | Download |
