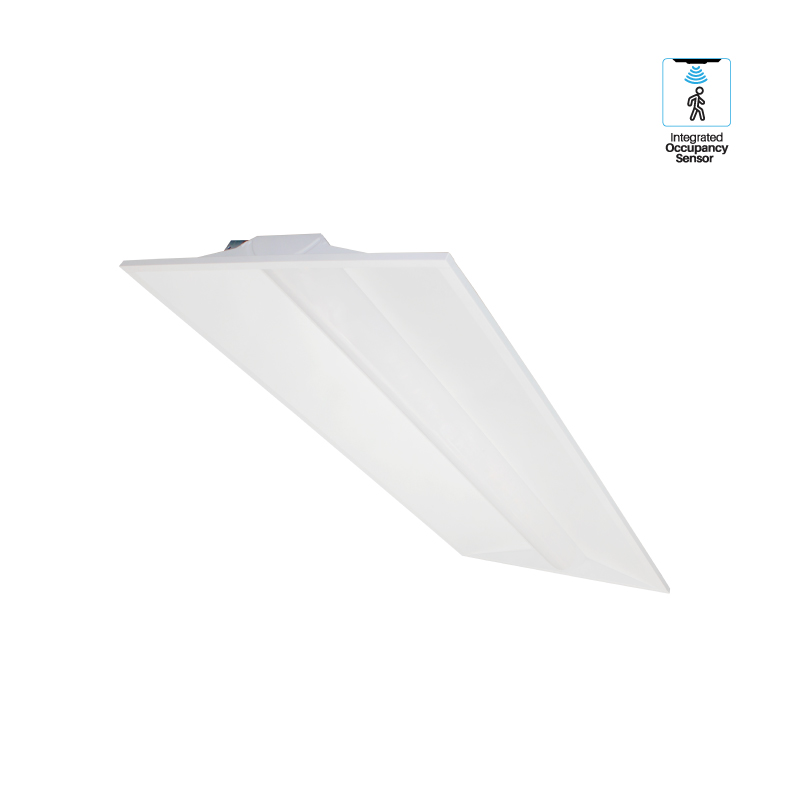

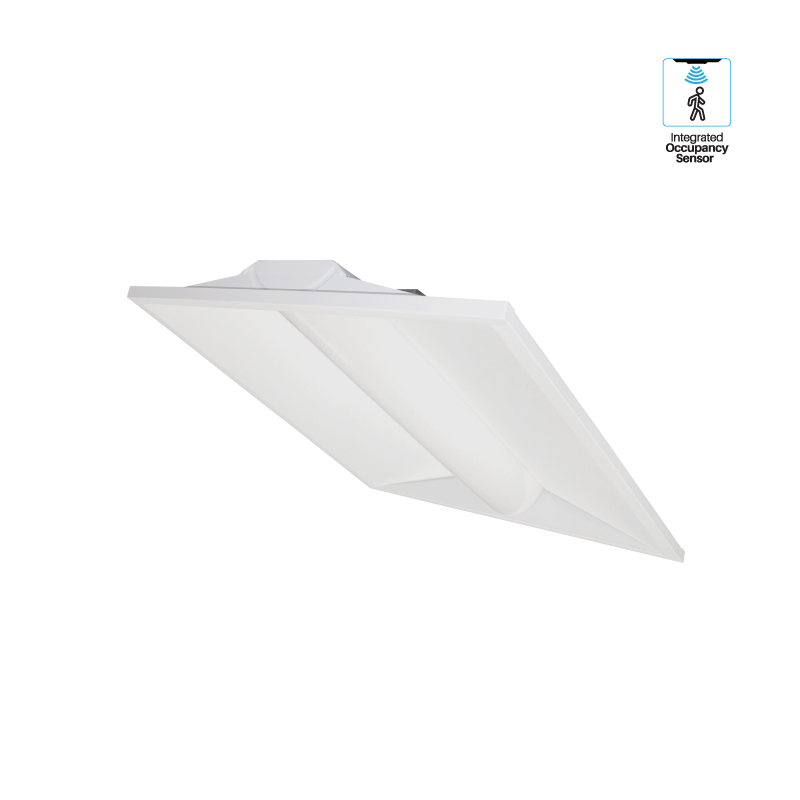

Smart Toucan Architectural Troffer
With Integrated Occupancy Sensor
IKIO’s Smart Toucan Architectural Troffer comes with integrated sensor to provide better lighting control to users. Designed to be an efficient and modern LED solution for traditional troffers, Toucan does not fall behind in terms of visual appeal either, thanks to its smooth finish. The troffer is DLC qualified and available in two sizes (2’x 2’, 2’x 4’) to suit your individua llighting needs. Choose Toucan for high light output without any flickering or dark spots.
PRODUCT FEATURES
• Soft, smooth, and uniform light output.
• Suitable for a wide range of applications due to its low profile.
• Integrated with sensor for enhanced lighting control.
• Metal surfaces are painted pre-fabrication with high gloss baked silver matte powder paint for a long-lasting finish.
| Limited Availability: Products Offered Until Stock Lasts. |
Product Details
| Efficacy (lm/W) | Up to 131.7 lm/W |
| Power (W) | 24.55 W, 35.62 W |
| CCT (K) | 4000 K, 5000 K |
| CRI | 80+ |
| Voltage | AC 120-277 V 50/60 Hz |
| Beam Angle | 120° |
| Dimming | 0-10 V, Continuous Dimming to 10% or below |
| Operating Temperature | -13° F to +122° F |
| IP Rating | IP20 |
| Housing | Steel Sheet |
Technical Resources
Product Sheet
LM79 Report
Installation Instructions
LM80 Report
SKU Details
| Power | SKU Number | CCT | Efficasy | Voltage | Lumen Output | Distribution/ Beam angle | Finish | Size | Diffuser | Qualified Product Code | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24.55 W | 662187547084 | 4000 K | 125.6 lm/W | 120-277 V | 3082.87 lm | 120° | White | 2 x 2 | Frosted | IK-AT22S-0025-40K[-MS,-EM,Blank] | Download | Download |
| 24.62 W | 662187479729 | 5000 K | 131.4 lm/W | 120-277 V | 3236.16 lm | 120° | White | 2 x 2 | Frosted | IK-AT22S-0025-50K[-MS,-EM,Blank] | Download | Download |
| 35.62 W | 662187547091 | 4000 K | 126.1 lm/W | 120-277 V | 4493.07 lm | 120° | White | 2 x 4 | Frosted | IK-AT24S-0036-40K[-MS,-EM,Blank] | Download | Download |
