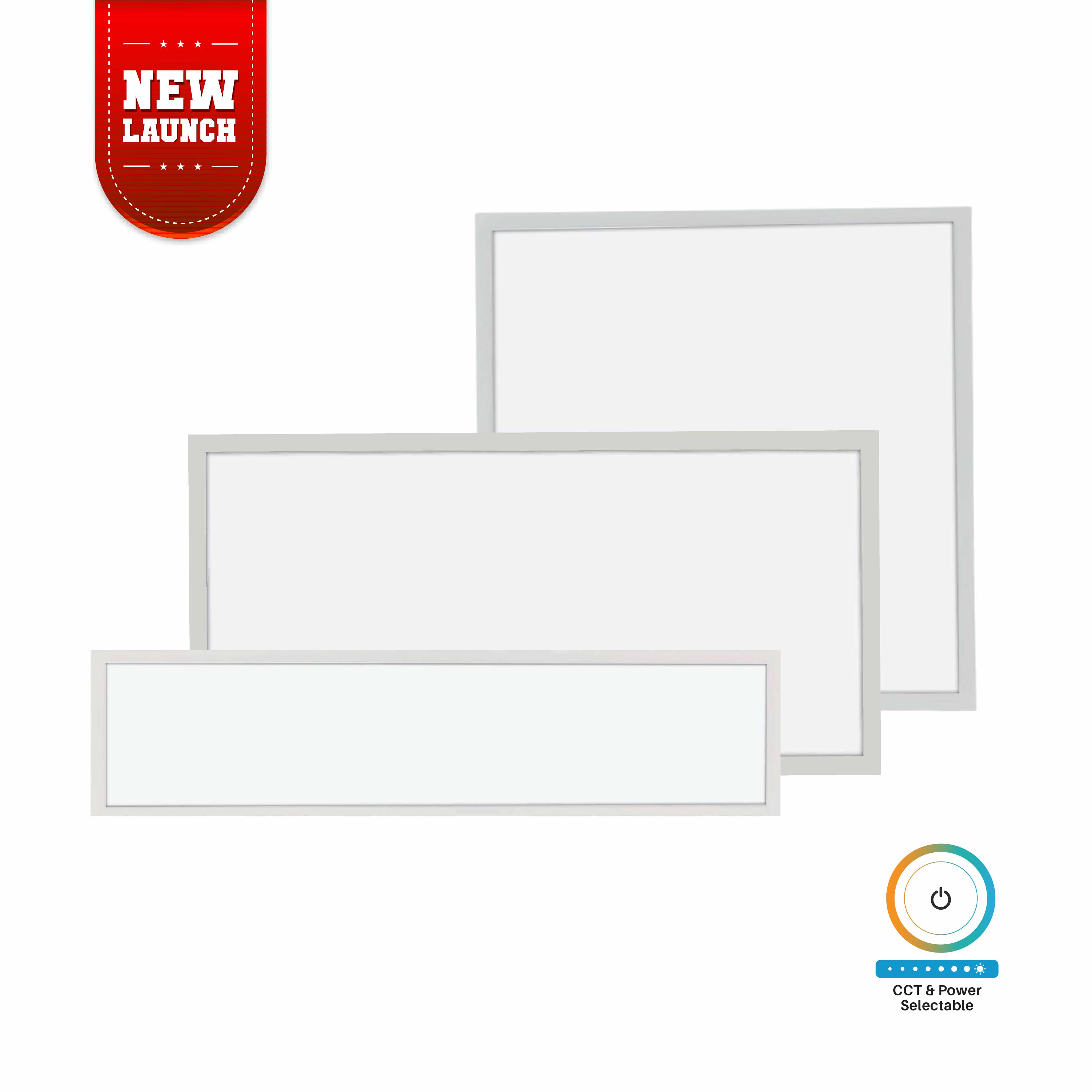

The Delphi Architectural Troffer is a versatile lighting solution crafted from Tier-1 domestically sourced components, delivering exceptional reliability and performance. It offers robust functionality, featuring advanced CCT and power selectability, along with seamless dimming control integration. With high efficacy and flicker-free illumination, it enhances productivity and visual comfort, making it an excellent choice for premium lighting needs, especially in federal projects.
- Premium quality with BAA & BABAA compliance, using Tier-1 domestically sourced
materials to meet federal procurement mandates.
- CCT and power selectability ensures precise light management with consistent color
quality, validated through photometric testing.
- Effective light diffusion with precision-crafted lenses ensures uniform illumination and eliminates dark spots.
- Equipped with 0-10V dimming capability for smooth integration with standard lighting control systems.
| Efficacy (lm/W) | Up to 128lm/W |
| Power Selectable (W) | Variant 1 : 20W-25W-30W Variant 2 : 20W-25W-30W Variant 3 : 25W-30W-35W |
| CCT Selectable (K) | 3500K-4000K-5000K |
| CRI | 82 |
| Voltage | AC 100-277V, 50/60 Hz |
| Beam Angle | 120° |
| Dimming | Continuous Dimming to 10% or Below |
| Operating Temperature | -4ºF ~ +122ºF |
| IP Rating | IP20 |
| Housing | Galvanized Steel Plate |
| Part Number | Power Selectable (Options) | Voltage | Lumen Output | Efficacy | CRI | Current | CCT Selectable | THD | Light Distrubution |
|---|---|---|---|---|---|---|---|---|---|
| W | V | lm | lm/W | A | K | ||||
| IK-ATR1-14-S0030-MV-D-CCT-WD-06-WH-BFU | 20 | 120V-277V | 2760 | 128 | 82 | 0.12 | 3500-4000-5000 | 10% | Type VS |
| 25 | 3200 | ||||||||
| 30 | 3900 | ||||||||
| IK-ATR1-22-S0030-MV-D-CCT-WD-06-WH-BFU | 20 | 120V-277V | 2760 | 128 | 82 | 0.12 | 3500-4000-5000 | 10% | Type VS |
| 25 | 3200 | ||||||||
| 30 | 3900 | ||||||||
| IK-ATR1-24-S0035-MV-D-CCT-WD-06-WH-BFU | 25 | 120V-277V | 3350 | 128 | 82 | 0.14 | 3500-4000-5000 | 10% | Type VS |
| 30 | 3840 | ||||||||
| 35 | 4500 |
