Locus Gen 2
Area Luminaire

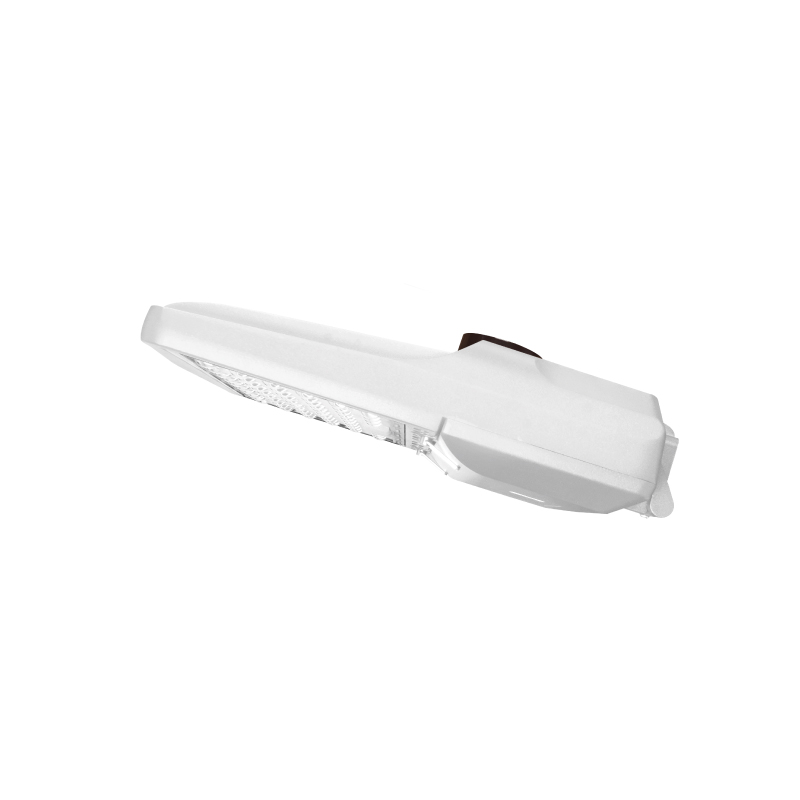

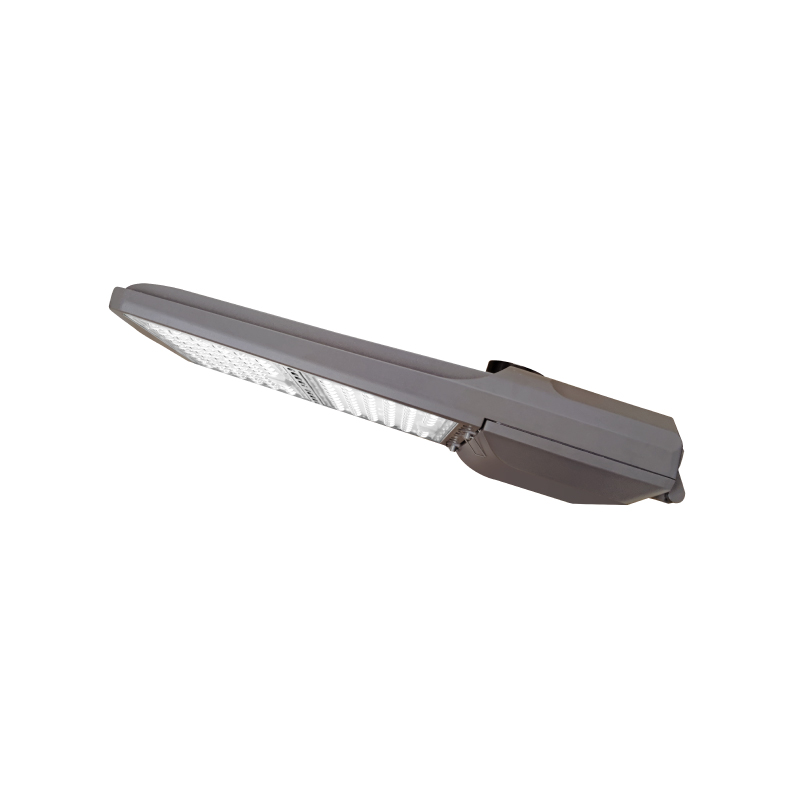

IKIO's Locus Gen2 Area Luminaire combines architectural form and versatility to make an excellent lighting solution for new construction or retrofit applications. Its power selectable capability, when added to features like custom-engineered optics, dimming options, and high-output LEDs, delivers the highest levels of convenience to users while resulting in clear, uniform illumination and lasting performance. It is designed to replace the existing HID fixtures up to 1000 W.
PRODUCT FEATURES
- Increased flexibility and ease with IKIO’s Power Selectable (switch between 75-100-150-200-240-300 W) feature.
- Sleek, low-profile design that delivers high-performance illumination and improves application site aesthetics.
- Heavy-duty, die-cast aluminum housing with an efficient heat sink for enhanced thermal performance.
- Designed for Dark Sky compliant performance to eliminate undesirable sky glow.
Product Details
| Efficacy (lm/W) | Up to 165 lm/W |
| Power Selectable (W) |
Variant 1 : 75 W-100 W-150 W Variant 2 : 200 W-240 W-300 W |
| CCT (K) | 5000 K |
| CRI | 75 |
| Voltage | AC 100-277 V 50/60 Hz, 277-480 V 50/60 Hz |
| Distribution | Type 3 |
| Dimming | Continuous Dimming to 10% or Below |
| Operating Temperature | -40 °F ~ +131 °F |
| IP Rating | IP66 |
| Housing | Aluminum |
Technical Resources
Product Sheet
LM79
Installation Instructions
TM21
SKU Details
| Max Power | SKU Number | CCT | Efficacy | Voltage | Lumen Output | Finish | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|
| 154.4 W | 662187540092 | 5000 K | 158.7 lm/W | 100-277 V | 11902.5 lm-15970 lm-24495 lm | Bronze | IK-SBSL1-0150-50-DY-RLV01-AI (Bronze T3/ Power Tunable 150/100/75) | IK-SBSL1-075100150-50-DY-RLV01[Blank, -AI] | Download | Download |
| 154.4 W | 662187487984 | 5000 K | 158.7 lm/W | 100-277 V | 11902.5 lm-15970 lm-24495 lm | White | IK-SBSL1-0150-50-DY-RLV01-AI (White T3/ Power Tunable 150/100/75) | IK-SBSL1-075100150-50-DY-RLV01[Blank, -AI] | Download | Download |
| 150.8 W | 662187540085 | 5000 K | 162.7 lm/W | 277-480 V | 12202.5 lm-16270 lm-24527 lm | Bronze | IK-SBSL1-0150-50-DY-RHV01-AI (Bronze T3/ Power Tunable 150/100/75) | IK-SBSL1-075100150-50-DY-RLHV01[Blank, -AI] | Download | Download |
| 150.8 W | 662187540078 | 5000 K | 162.7 lm/W | 277-480 V | 12202.5 lm-16270 lm-24527 lm | White | IK-SBSL1-0150-50-DY-RLHV01-AI (White T3/ Power Tunable 150/100/75) | IK-SBSL1-075100150-50-DY-RLHV01[Blank, -AI] | Download | Download |
| 302.5 W | 662187487991 | 5000 K | 161.2 lm/W | 100-277 V | 32240 lm-38688 lm-48780 lm | Bronze | IK-SBSL1-0300-50-DY-RLV02-AI (Bronze T3/Power Tunable 300/240/200) | IK-SBSL1-200240300-50-DY-RLV02[Blank, -AI] | Download | Download |
| 302.5 W | 662187488004 | 5000 K | 161.2 lm/W | 100-277 V | 32240 lm-38688 lm-48780 lm | White | IK-SBSL1-0300-50-DY-RLV02-AI (White T3/Power Tunable 300/240/200) | IK-SBSL1-200240300-50-DY-RLV02[Blank, -AI] | Download | Download |
| 300.7 W | 662187540061 | 5000 K | 165.1 lm/W | 277-480 V | 33020 lm-39624 lm-49626 lm | Bronze | IK-SBSL1-0300-50-DY-RHV02-AI (Bronze T3/Power Tunable 300/240/200) | IK-SBSL1-200240300-50-DY-RLHV02[Blank, -AI] | Download | Download |
| 300.7 W | 662187540054 | 5000 K | 165.1 lm/W | 277-480 V | 33020 lm-39624 lm-49626 lm | White | IK-SBSL1-0300-50-DY-RHV02-AI (White T3/Power Tunable 300/240/200) | IK-SBSL1-200240300-50-DY-RLHV02[Blank, -AI] | Download | Download |
