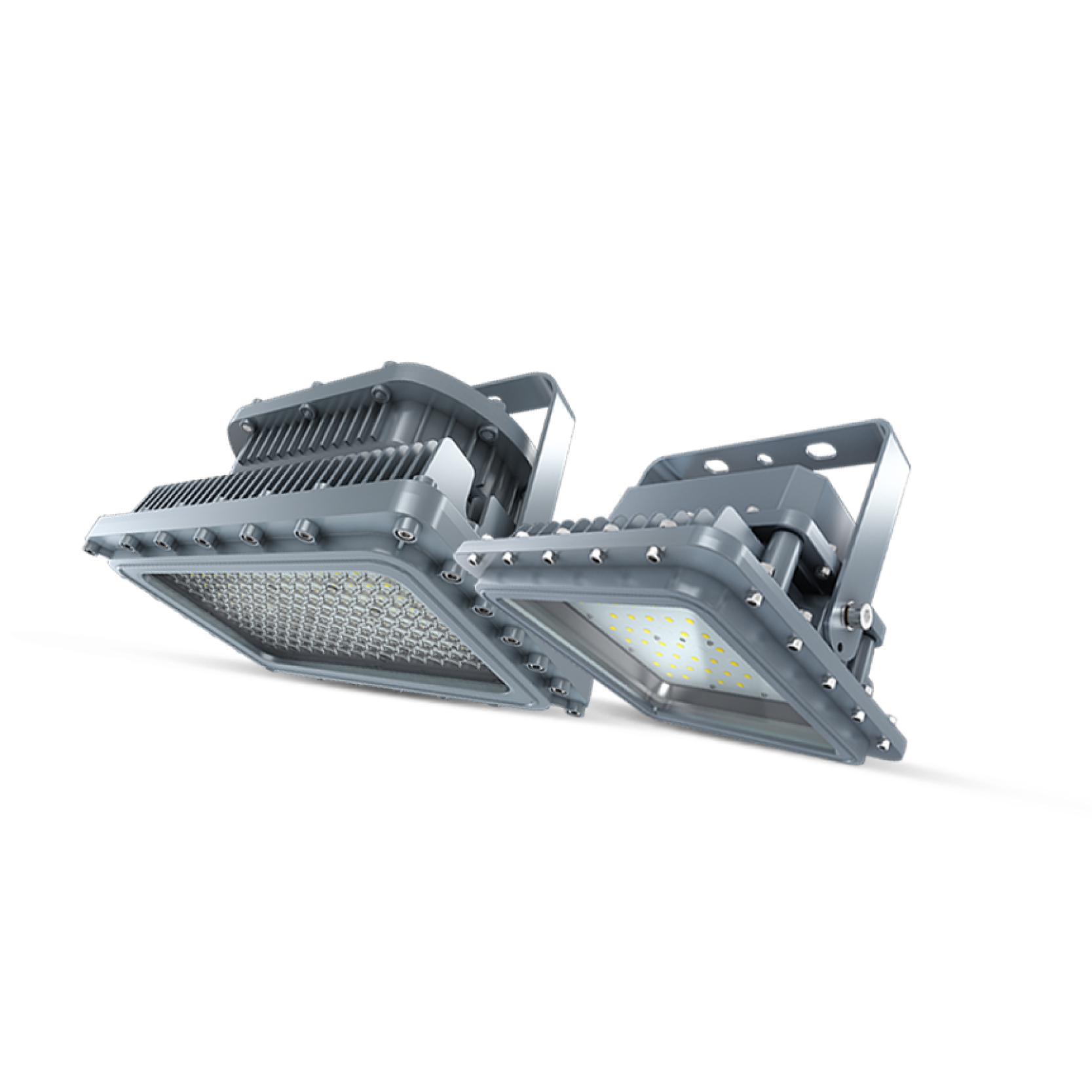

Dominus Explosion Proof Square High Bay
CLASS I DIVISION 1
The Dominus Explosion Square High Bay fixture is designed for use in hazardous facilities and provides its operators with a powerful & efficient alternative to traditional hazardous location luminaries. Its compact design makes this fixture an excellent replacement option for bulky & high maintenance fixtures. The copper-free aluminum-alloy body is powder coated for added durability & attractive aesthetic appearance. Special heat dissipating design in conjunction with anti-vibration technology ensures a high lifespan with maximum lumen retention. This fixture utilizes a premium Meanwell Driver & SMT LED chipset to achieve high efficacies.
PRODUCT FEATURES
Classifications / Ratings
- Class I, Division 1, Groups C, D
- Class I, Division 2, Groups A, B, C,D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- Temperature Rating C1D1 T4 / T5 / T6
Product Details
| Efficacy (lm/W) | 140 lm/W |
| Variant & Power (W) |
Dominus 1 (D1L140) - 20 W, 60 W, 80 W Dominus 2 (D2L140) - 100 W, 120 W, 150 W, 200 W |
| CCT (K) | 4000 K, 5000 K |
| CRI | 80 |
| Voltage | 100-277 V AC 50/60 Hz (200-480 V fixtures also available) |
| Beam Angle | 120° (40°, 60°, 90°, can be made as per request) |
| Operating Temperature | -40° F to +131° F |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Housing | Aluminum |
