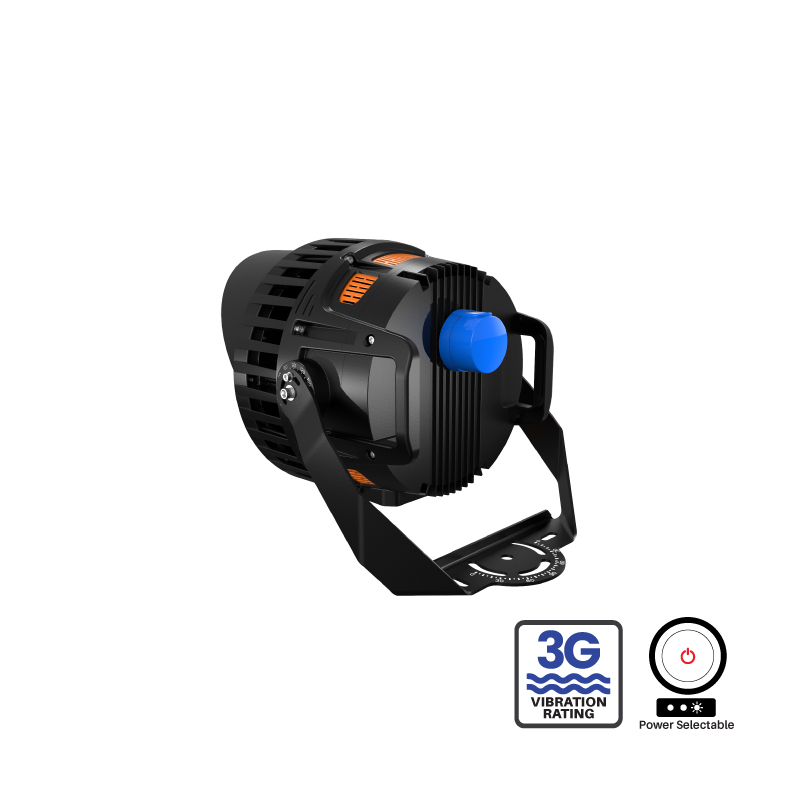

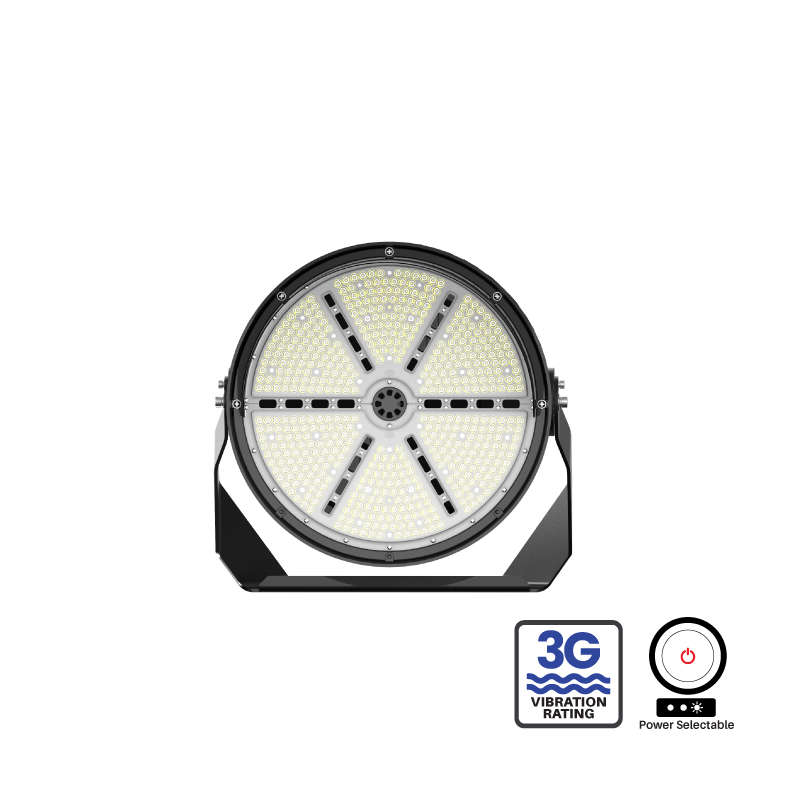

IKIO’s Raydent Gen2 Flood Light features visor technology for precise light control. With superior efficacy and multi-faceted optics, it delivers glare free, high-power illumination for large stadiums, playfields, and sports arenas. Its rugged die-cast design ensures durability in harsh conditions, while the efficient heat sink and low EPA design provide long-term stability. Additionally, power selectability makes Raydent an ideal choice for venues requiring controlled, high-performance lighting.
• Equipped with a power-selectable function for enhanced lighting control.
• Features dimming control (0-10V) for adjustable brightness.
• Delivers high-efficacy lighting with exceptional lumen output and CRI.
• Equipped with surge protection for reliable performance during fluctuations.
• Compatible with DMX control for dynamic functions such as color-changing, grouping, scheduling,
and remote operation.
• Visor and laser pointer options available.
• Designed to withstand harsh conditions with an IP65 rating for wet locations and a low EPA.
• Precision-engineered optics with a wide beam angle ensure even light distribution
| Efficacy (lm/W) | Upto 150lm/W |
| Power Selectable (W) |
Variant 1 : 300W-400W-500W-600W Variant 2 : 750W-1000W-1200W |
| CCT (K) | 4000K, 5000K, 5700K |
| CRI | 72 |
| Voltage | AC 120-277V, 277-480V 50/60 Hz |
| Distribution | NEMA:4 (NEMA:5/NEMA:6/NEMA:7: Optional) |
| Dimming | Continuous Dimming to 10% or Below |
| Operating Temperature | -40ºF ~ +113ºF |
| IP Rating | IP65 |
| Housing | Die-cast Aluminum |
| Beam Angle | 20°, 30°, 40° |
| EPA | 1.6ft², 3.3ft² |
| Max Power | SKU Number | Efficacy | CCT | Voltage | Lumen Output | Beam Angle | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|
| 596W | 662187512037 | 134.77lm/W | 4000K | 120-277V | 40431lm-53908lm-67385lm-80322.92lm | 20° | IK-SP08-600/500/400/300W-E1PS2MV-40K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS2MV-[BR, WH, BL] | Download | Download |
| 596.8W | 662187512068 | 135.14lm/W | 4000K | 277-480V | 40542lm-54056lm-67570lm-80651.5lm | 20° | IK-SP08-600/500/400/300W-E1PS2HV-40K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS2HV-[BR, WH, BL] | Download | Download |
| 596W | 662187512044 | 135.35lm/W | 5000K | 120-277V | 40605lm-54140lm-67675lm-80668.6lm | 20° | IK-SP08-600/500/400/300W-E1PS2MV-50K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS2MV-[BR, WH, BL] | Download | Download |
| 595.4W | 662187512075 | 135.57lm/W | 5000K | 277-480V | 40671lm-54228lm-67785lm-80718.3lm | 20° | IK-SP08-600/500/400/300W-E1PS2HV-50K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS2HV-[BR, WH, BL] | Download | Download |
| 596.1W | 662187512051 | 135.94lm/W | 5700K | 120-277V | 40782lm-54376lm-67970lm-81033.8lm | 20° | IK-SP08-600/500/400/300W-E1PS2MV-57K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS2MV-[BR, WH, BL] | Download | Download |
| 595W | 662187512082 | 135.99lm/W | 5700K | 277-480V | 40797lm-54396lm-67995lm-80914.05lm | 20° | IK-SP08-600/500/400/300W-E1PS2HV-57K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS2HV-[BR, WH, BL] | Download | Download |
| 1197.5W | 662187512150 | 136.36lm/W | 4000K | 120-277V | 102270lm-136360lm-163291.1lm | 20° | IK-SP08-1200/1000/750W-E1PS2MV-40K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS2MV-[BR, WH, BL] | Download | Download |
| 1174.5W | 662187512181 | 138.59lm/W | 4000K | 277-480V | 103942.5lm-138590lm-162704.66lm | 20° | IK-SP08-1200/1000/750W-E1PS2HV-40K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS2HV-[BR, WH, BL] | Download | Download |
| 1198.1W | 662187512167 | 136.76lm/W | 5000K | 120-277V | 102570lm-136760lm-163852.156lm | 20° | IK-SP08-1200/1000/750W-E1PS2MV-50K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS2MV-[BR, WH, BL] | Download | Download |
| 1174W | 662187512198 | 139.38lm/W | 5000K | 277-480V | 104535lm-139380lm-163632.12lm | 20° | IK-SP08-1200/1000/750W-E1PS2HV-50K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS2HV-[BR, WH, BL] | Download | Download |
| 1198.6W | 662187512174 | 137.16lm/W | 5700K | 120-277V | 102870lm-137160lm-164399.976lm | 20° | IK-SP08-1200/1000/750W-E1PS2MV-57K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS2MV-[BR, WH, BL] | Download | Download |
| 1173.6W | 662187512204 | 140.16lm/W | 5700K | 277-480V | 105120lm-140160lm-164491.776lm | 20° | IK-SP08-1200/1000/750W-E1PS2HV-57K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS2HV-[BR, WH, BL] | Download | Download |
| 597.1W | 662187512099 | 146.92lm/W | 4000K | 120-277V | 44076lm-58768lm-73460lm-87726lm | 30° | IK-SP08-600/500/400/300W-E1PS3MV-40K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS3MV-[BR, WH, BL] | Download | Download |
| 596.3W | 662187512129 | 148.13lm/W | 4000K | 277-480V | 44439lm-59252lm-74065lm-88324lm | 30° | IK-SP08-600/500/400/300W-E1PS3HV-40K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS3HV-[BR, WH, BL] | Download | Download |
| 597.3W | 662187512105 | 147.43lm/W | 5000K | 120-277V | 44229lm-58972lm-73715lm-88063lm | 30° | IK-SP08-600/500/400/300W-E1PS3MV-50K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS3MV-[BR, WH, BL] | Download | Download |
| 596W | 662187512136 | 148.63lm/W | 5000K | 277-480V | 44589lm-59452lm-74315lm-88582lm | 30° | IK-SP08-600/500/400/300W-E1PS3HV-50K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS3HV-[BR, WH, BL] | Download | Download |
| 597.5W | 662187512112 | 147.94lm/W | 5700K | 120-277V | 44382lm-59176lm-73970lm-88399lm | 30° | IK-SP08-600/500/400/300W-E1PS3MV-57K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS3MV-[BR, WH, BL] | Download | Download |
| 595.8W | 662187512143 | 149.12lm/W | 5700K | 277-480V | 44736lm-59648lm-74560lm-88840lm | 30° | IK-SP08-600/500/400/300W-E1PS3HV-57K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS3HV-[BR, WH, BL] | Download | Download |
| 1195.1W | 662187512211 | 149.82lm/W | 4000K | 120-277V | 110295lm-147060lm-176032lm | 30° | IK-SP08-1200/1000/750W-E1PS3MV-40K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS3MV-[BR, WH, BL] | Download | Download |
| 1175.7W | 662187512242 | 152.79lm/W | 4000K | 277-480V | 112642.5lm-150190lm-175930lm | 30° | IK-SP08-1200/1000/750W-E1PS3HV-40K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS3HV-[BR, WH, BL] | Download | Download |
| 1194.6W | 662187507576 | 150.38lm/W | 5000K | 120-277V | 110880lm-147840lm-177037lm | 30° | IK-SP08-1200/1000/750W-E1PS3MV-50K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS3MV-[BR, WH, BL] | Download | Download |
| 1175.9W | 662187487939 | 153.29lm/W | 5000K | 277-480V | 113205lm-150940lm-176749lm | 30° | IK-SP08-1200/1000/750W-E1PS3HV-50K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS3HV-[BR, WH, BL] | Download | Download |
| 1194.1W | 662187512235 | 150.94lm/W | 5700K | 120-277V | 111465lm-148620lm-178041lm | 30° | IK-SP08-1200/1000/750W-E1PS3MV-57K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS3MV-[BR, WH, BL] | Download | Download |
| 1176W | 662187512266 | 153.8lm/W | 5700K | 277-480V | 113775lm-151700lm-177567lm | 30° | IK-SP08-1200/1000/750W-E1PS3HV-57K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS3HV-[BR, WH, BL] | Download | Download |
| 597.6W | 662187511870 | 149.21lm/W | 4000K | 120-277V | 44763lm-59684lm-74605lm-89161lm | 40° | IK-SP08-600/500/400/300W-E1PS4MV-40K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS4MV-[BR, WH, BL] | Download | Download |
| 584.5W | 662187511900 | 150.67lm/W | 4000K | 277-480V | 45201lm-60268lm-75335lm-88059lm | 40° | IK-SP08-600/500/400/300W-E1PS4HV-40K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS4HV-[BR, WH, BL] | Download | Download |
| 597.9W | 662187511887 | 149.62lm/W | 5000K | 120-277V | 44886lm-59848lm-74810lm-89455lm | 40° | IK-SP08-600/500/400/300W-E1PS4MV-50K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS4MV-[BR, WH, BL] | Download | Download |
| 584.2W | 662187511917 | 151.4lm/W | 5000K | 277-480V | 45420lm-60560lm-75700lm-88454lm | 40° | IK-SP08-600/500/400/300W-E1PS4HV-50K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS4HV-[BR, WH, BL] | Download | Download |
| 598.3W | 662187511894 | 150.02lm/W | 5700K | 120-277V | 45006lm-60008lm-75010lm-89750lm | 40° | IK-SP08-600/500/400/300W-E1PS4MV-57K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS4MV-[BR, WH, BL] | Download | Download |
| 584W | 662187512631 | 152.13lm/W | 5700K | 277-480V | 45639lm-60852lm-76065lm-88849lm | 40° | IK-SP08-600/500/400/300W-E1PS4HV-57K-BL-SH-20SP-FM | IK-SP08-600/500/400/300W-E1PS4HV-[BR, WH, BL] | Download | Download |
| 1195.1W | 662187512648 | 149.82lm/W | 4000K | 120-277V | 112365lm-149820lm-179048lm | 40° | IK-SP08-1200/1000/750W-E1PS4MV-40K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS4MV-[BR, WH, BL] | Download | Download |
| 1175.7W | 662187512679 | 152.79lm/W | 4000K | 277-480V | 114592.5lm-152790lm-179632lm | 40° | IK-SP08-1200/1000/750W-E1PS4HV-40K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS4HV-[BR, WH, BL] | Download | Download |
| 1194.6W | 662187512655 | 150.38lm/W | 5000K | 120-277V | 112785lm-150380lm-179643lm | 40° | IK-SP08-1200/1000/750W-E1PS4MV-50K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS4MV-[BR, WH, BL] | Download | Download |
| 1175.9W | 662187512686 | 153.29lm/W | 5000K | 277-480V | 114967.5lm-153290lm-180253lm | 40° | IK-SP08-1200/1000/750W-E1PS4HV-50K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS4HV-[BR, WH, BL] | Download | Download |
| 1194.1W | 662187512662 | 150.94lm/W | 5700K | 120-277V | 895575lm-1194100lm-180239lm | 40° | IK-SP08-1200/1000/750W-E1PS4MV-57K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS4MV-[BR, WH, BL] | Download | Download |
| 1176W | 662187512693 | 153.8lm/W | 5700K | 277-480V | 115350lm-153800lm-180873lm | 40° | IK-SP08-1200/1000/750W-E1PS4HV-57K-BL-SH-20SP-FM | IK-SP08-1200/1000/750W-E1PS4HV-[BR, WH, BL] | Download | Download |
