Magnus
Architectural Flood Light

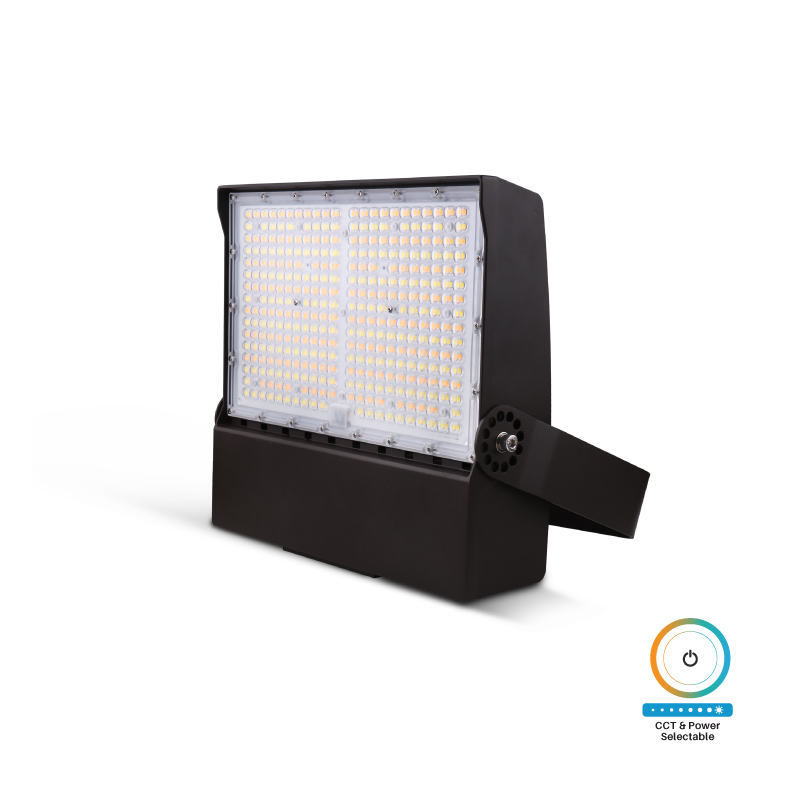

IKIO’s Magnus Architectural Flood Light is a next-gen color and wattage selectable outdoor luminaire designed to provide high performance, durability, and illumination in expansive commercial and industrial spaces. With features like sturdy aluminum housing, a rugged die-cast design, and integrated cooling fans, Magnus ensures optimum heat dissipation, resulting in the stability of the lighting system and a long lifespan.
PRODUCT FEATURES
- CCT & power selectable capability.
- Superior efficacy, rendering clear light output.
- Dimming capable (0-10 V).
- Integrated cooling fans for optimum heat dissipation.
- IP65 rated - suitable for wet locations.
- Uniform illumination with no flickering or humming.
Product Details
| Efficacy (lm/W) | Up to 161 lm/W |
| Power Selectable (W) | 205 W-150 W-100 W |
| CCT Selectable (K) | 3000 K-4000 K-5000 K |
| CRI | 84 |
| Voltage | AC 120-277 V V 50/60 Hz |
| Beam Angle | 240° |
| Dimming | 0-10 V Dimming |
| Operating Temperature | -10° F to +122° F |
| IP Rating | IP65 |
| Housing | Die-cast Aluminum |
Technical Resources
Product Sheet
Installation Instructions
SKU Details
| Max Power | SKU Number | Efficacy | CCT (Selectable) | Voltage | Lumen Output | Beam angle | Finish | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 211.54 W | 662187482187 | 133.94 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 13394 lm-20091 lm-28333.2 lm | 140°x120° | Bronze | IK-FLBO2-205W-30/40/50K-MV-BR | IK-FLBO2-205W-30/40/50K-MV | Download | Download |
