Lineo

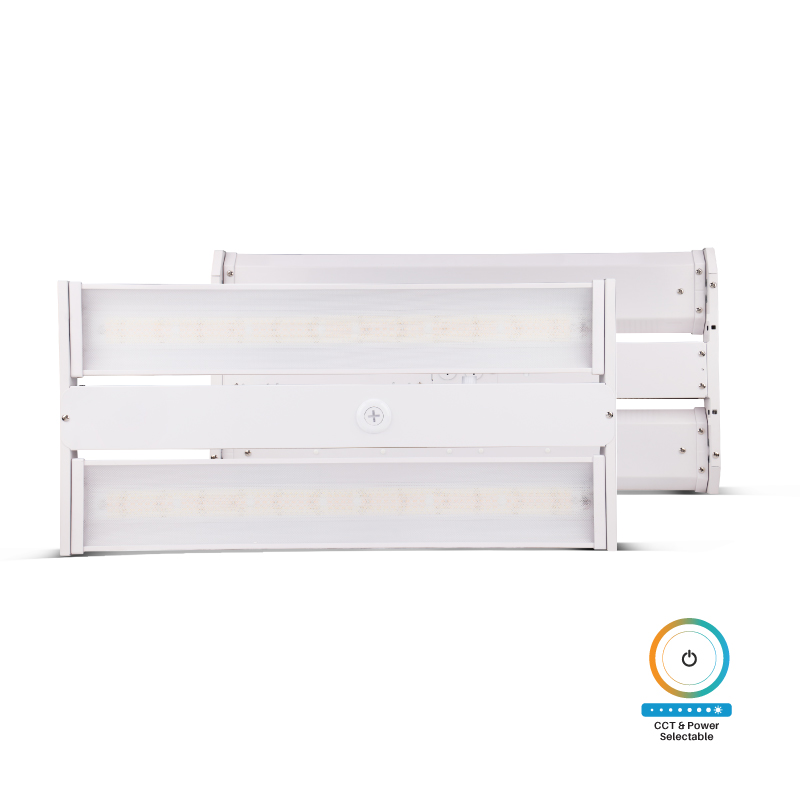

Linear High Bay
IKIO’s Lineo Linear High Bay comes with CCT and Power selectable capability, making it suitable for a variety of industrial and commercial applications and mounting heights. The luminaire is available in multiple lumen packages and can be considered an easy replacement for traditional linear fluorescent and HID fixtures. When installed correctly at the recommended height levels (15–35 feet), Lineo Linear High Bay can help reduce energy consumption by up to 70% and last a long life span.
PRODUCT FEATURES
- CCT & power selectable capability.
- Exceptional efficacy of up to 157 lm/W.
- Soft & uniform light output with high CRI.
- Dimming capable (0-10 V).
- Sensor options (daylight/occupancy/multifunction).
- Instant start with no flickering or humming.
Product Details
| Efficacy (lm/W) | Up to 157 lm/W |
| Power Selectable (W) | 165 W-135 W-110 W-80 W |
| CCT Selectable (K) | 4000 K-5000 K |
| CRI | 80+ |
| Voltage | 120-277 V |
| Beam Angle | 90° |
| Dimming | 0-10V Dimming |
| Operating Temperature | -22° F to +122° F |
| IP Rating | IP20 |
| Housing | Iron +PC |
Technical Resources
Product Sheet
Installation Instructions
SKU Details
| Power | SKU Number | Efficacy | CCT | Voltage | Lumen Output | Beam angle | Finish | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 165 W-135 W-110 W-80 W | 662187482354 | 145.26 lm/W-148.83 lm/W-153.20 lm/W-157.14 lm/W | 4000 K-5000 K | 120-277 V | 24282 lm-20575 lm-17109 lm-13254 lm | 90° | White | IK-LHBL2-165W-40/50K-WH | Not Qualified Yet | Download | Download |
