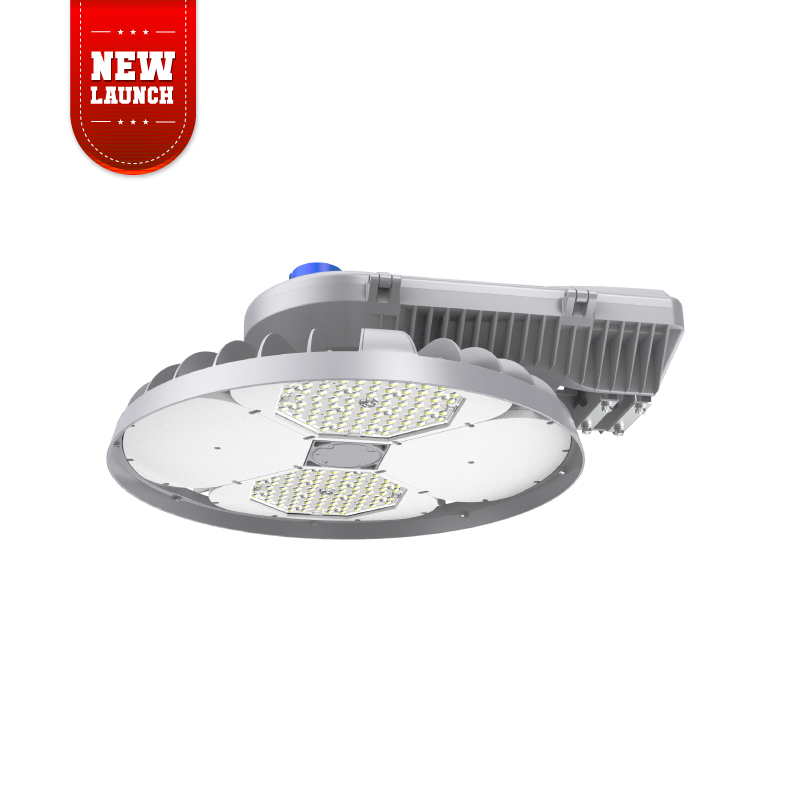

Hexacule
High Mast Light
The Hexacule High Mast Light is designed for areas that require an extra emphasis on safety and security. With its seamless combination of an advanced free-form optics and housing structure, it delivers not just high performance and efficiency, but also a modern visual appeal with its spectacular look.
PRODUCT FEATURES
- Adjustable beam angle up to 240 degrees.
- Designed with a seamless combination of an advanced free form of optics and structure.
- Micro multi-facet optic design for superior light uniformity and glare reduction.
- 10 years manufacturer’s warranty.
- Surge protection of up to 20kA.
Product Details
| Efficacy (lm/W) | 140 lm/W |
| Power (W) | 240 W, 320 W, 475 W, 575 W, 750 W |
| CCT (K) | 4000 K, 5000 K |
| CRI | 80+ |
| Voltage | AC 100 - 277 V or AC 240 - 480 V |
| Beam Angle | 240° |
| Dimming | Yes |
| Operating Temperature | -40° F to +122° F |
| IP Rating | IP66 |
| Housing | Die-cast Aluminum |
Technical Resources
Product Sheet
LM79 Reports
Installation Instructions
SKU Details
| Power | SKU Number | CCT | Voltage | Lumen Output (lm) | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|
| 240 W | 662187538570 | 4000 K | AC 100 - 277 V | 33600 lm | Not Qualified Yet | IK-RFL1-L140-0240-DY-40 | Download | Download |
| 240 W | 662187538587 | 5000 K | AC 100 - 277 V | 33600 lm | Not Qualified Yet | IK-RFL1-L140-0240-DY-50 | Download | Download |
| 320 W | 662187538624 | 4000 K | AC 100 - 277 V | 44800 lm | Not Qualified Yet | IK-RFL1-L140-0320-DY-40 | Download | Download |
| 320 W | 662187538631 | 5000 K | AC 100 - 277 V | 44800 lm | Not Qualified Yet | IK-RFL1-L140-0320-DY-50 | Download | Download |
| 475 W | 662187538686 | 4000 K | AC 100 - 277 V | 66500 lm | Not Qualified Yet | IK-RFL1-L140-0475-DY-40 | Download | Download |
| 475 W | 662187538693 | 5000 K | AC 100 - 277 V | 66500 lm | Not Qualified Yet | IK-RFL1-L140-0475-DY-50 | Download | Download |
| 575 W | 662187538730 | 4000 K | AC 100 - 277 V | 80500 lm | Not Qualified Yet | IK-RFL1-L140-0575-DY-40 | Download | Download |
| 575 W | 662187538747 | 5000 K | AC 100 - 277 V | 80500 lm | Not Qualified Yet | IK-RFL1-L140-0575-DY-50 | Download | Download |
| 750 W | 662187461823 | 4000 K | AC 100 - 277 V | 105000 lm | Not Qualified Yet | IK-RFL1-L140-0750-DY-40 | Download | Download |
| 750 W | 662187461830 | 5000 K | AC 100 - 277 V | 105000 lm | Not Qualified Yet | IK-RFL1-L140-0750-DY-50 | Download | Download |
| 240 W | 662187477510 | 4000 K | AC 240 - 480 V | 33600 lm | Not Qualified Yet | IK-RFL1-L140-0240-DY-40 | Download | Download |
| 240 W | 662187477527 | 5000 K | AC 240 - 480 V | 33600 lm | Not Qualified Yet | IK-RFL1-L140-0240-DY-50 | Download | Download |
| 320 W | 662187477534 | 4000 K | AC 240 - 480 V | 44800 lm | Not Qualified Yet | IK-RFL1-L140-0320-DY-40 | Download | Download |
| 320 W | 662187477541 | 5000 K | AC 240 - 480 V | 44800 lm | Not Qualified Yet | IK-RFL1-L140-0320-DY-50 | Download | Download |
| 475 W | 662187477558 | 4000 K | AC 240 - 480 V | 66500 lm | Not Qualified Yet | IK-RFL1-L140-0475-DY-40 | Download | Download |
| 475 W | 662187477565 | 5000 K | AC 240 - 480 V | 66500 lm | Not Qualified Yet | IK-RFL1-L140-0475-DY-50 | Download | Download |
| 575 W | 662187477572 | 4000 K | AC 240 - 480 V | 80500 lm | Not Qualified Yet | IK-RFL1-L140-0575-DY-40 | Download | Download |
| 575 W | 662187477596 | 5000 K | AC 240 - 480 V | 80500 lm | Not Qualified Yet | IK-RFL1-L140-0575-DY-50 | Download | Download |
| 750 W | 662187477602 | 4000 K | AC 240 - 480 V | 105000 lm | Not Qualified Yet | IK-RFL1-L140-0750-DY-40 | Download | Download |
| 750 W | 662187477619 | 5000 K | AC 240 - 480 V | 105000 lm | Not Qualified Yet | IK-RFL1-L140-0750-DY-50 | Download | Download |
