GlareX
Stadium Flood Light

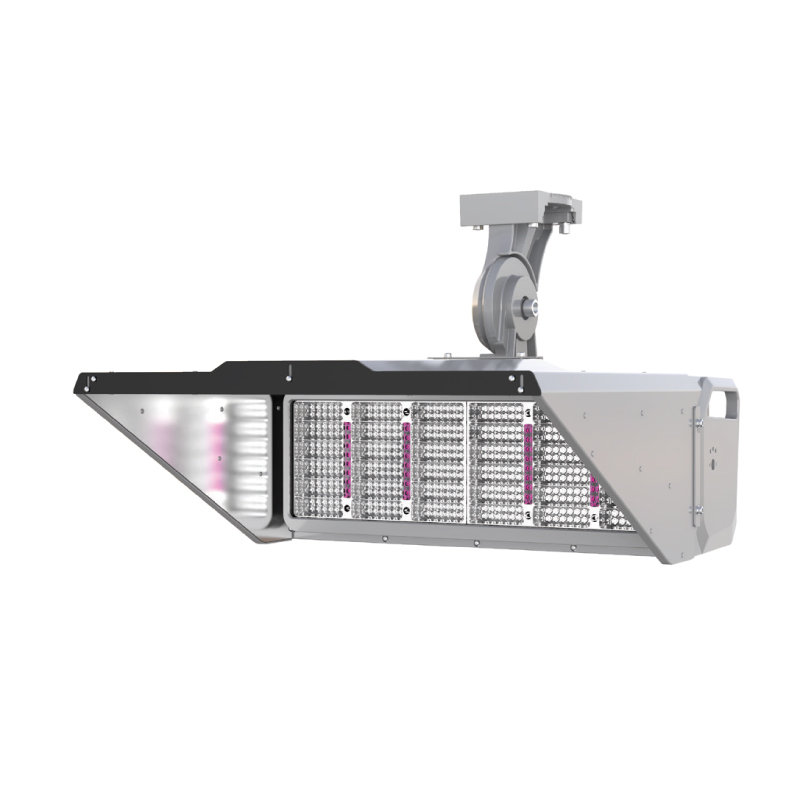

IKIO's GlareX Stadium Flood Light, featuring advanced Optimum Light Management (OLM) technology, delivers precise lighting through multi-faceted optics and integrated anti-glare visors. This combination ensures exceptional optical control and enhanced visibility, enabling players to track aerial balls effortlessly while offering spectators a strain-free viewing experience. GlareX provides highly targeted illumination, significantly reducing light spillage. Additionally, its vacuum-aluminized reflector enhances reflectivity for superior brightness and energy efficiency. The luminaire is also compatible with RGB technology, supported by DMX control.

PRODUCT FEATURES

- Comes with a glare-control visor to minimize glare while avoiding unnecessary light spillage,
  achieving a UGR rating of <10.
- High-quality diffusion lens with a louvered design ensures focused light output for precise illumination.
- Incorporates a vacuum-aluminized reflector with >97% reflectivity for superior brightness.
- Engineered with a low EPA and high WSR for reduced wind load and enhanced durability in harsh weather conditions.
- Works efficiently with DMX control, providing efficient lighting control and lighting automation capability.

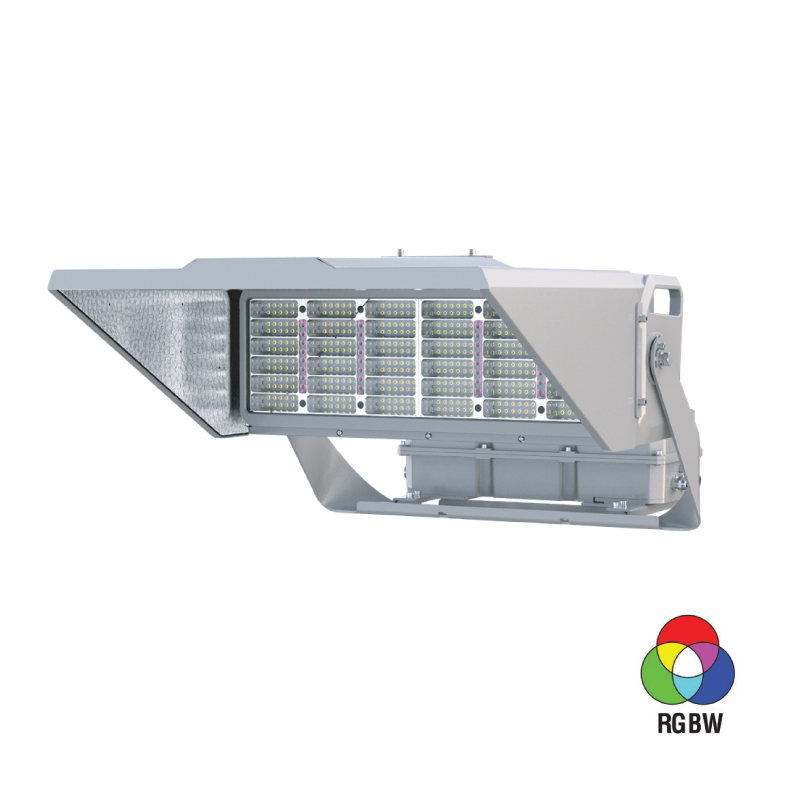

- Compatible with RGBW lens, enabling dynamic lighting capabilities.

Product Details
Efficacy (lm/W) 125lm/W
Power (W) 800W, 1200W,  (800W, 1200W RGBW)
Color Temperature (CCT) 3000K, 4000K, 5000K, 5700K, 6500K
Color Red, Green, Blue, White
CRI 70+
Voltage AC 120-277V, 200-480V, 277-480V 50/60 Hz
Distribution Type I, Very Short
Dimming 0-10V Dimming
Operating Temperature -22ºF ~ +122ºF
IP Rating IP66
Housing Die-cast Aluminum
Beam Angle 15°, 20°, 25°, 40°
EPA 1.55²
Technical Resources
Technical Data Sheet
Technical Data Sheet (RGBW)
Installation Instructions
SKU Details
Power SKU Number CCT /Color Voltage Lumen Output Beam Angle Ordering Part Number IES File Mounting Type
800W + 200W RGBW 662187541150 RGBW 200-480V 100000lm 40˚ IK-GSFL-800W-RGBW-HV-GR-40D-SH-10SP-FMED-DMX On request Flood Mount Bracket with External Driver Box
800W + 200W RGBW 662187541068 RGBW 200-480V 100000lm 40˚ IK-GSFL-800W-RGBW-HV-GR-40D-SH-10SP-TAM-DMX On request Top Arm Mount Bracket
800W + 200W RGBW 662187541105 RGBW 200-480V 100000lm 40˚ IK-GSFL-800W-RGBW-HV-GR-40D-SH-10SP-FM-DMX On request Flood Mount Bracket
800W 662187540887 5000K 120-277V 100000lm 15˚ IK-GSFL-800W-50K-MV-GR-15D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540849 5000K 120-277V 100000lm 15˚ IK-GSFL-800W-50K-MV-GR-15D-SH-10SP-FM Download Flood Mount Bracket
800W 662187540818 5000K 120-277V 100000lm 15˚ IK-GSFL-800W-50K-MV-GR-15D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187540894 5000K 120-277V 100000lm 20˚ IK-GSFL-800W-50K-MV-GR-20D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540856 5000K 120-277V 100000lm 20˚ IK-GSFL-800W-50K-MV-GR-20D-SH-10SP-FM Download Flood Mount Bracket
800W 662187511405 5000K 120-277V 100000lm 20˚ IK-GSFL-800W-50K-MV-GR-20D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187540900 5000K 120-277V 100000lm 25˚ IK-GSFL-800W-50K-MV-GR-25D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540863 5000K 120-277V 100000lm 25˚ IK-GSFL-800W-50K-MV-GR-25D-SH-10SP-FM Download Flood Mount Bracket
800W 662187540825 5000K 120-277V 100000lm 25˚ IK-GSFL-800W-50K-MV-GR-25D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187540917 5000K 120-277V 100000lm 40˚ IK-GSFL-800W-50K-MV-GR-40D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540870 5000K 120-277V 100000lm 40˚ IK-GSFL-800W-50K-MV-GR-40D-SH-10SP-FM Download Flood Mount Bracket
800W 662187540832 5000K 120-277V 100000lm 40˚ IK-GSFL-800W-50K-MV-GR-40D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187540993 5000K 277-480V 100000lm 15˚ IK-GSFL-800W-50K-HV-GR-15D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540955 5000K 277-480V 100000lm 15˚ IK-GSFL-800W-50K-HV-GR-15D-SH-10SP-FM Download Flood Mount Bracket
800W 662187540924 5000K 277-480V 100000lm 15˚ IK-GSFL-800W-50K-HV-GR-15D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187541006 5000K 277-480V 100000lm 20˚ IK-GSFL-800W-50K-HV-GR-20D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540962 5000K 277-480V 100000lm 20˚ IK-GSFL-800W-50K-HV-GR-20D-SH-10SP-FM Download Flood Mount Bracket
800W 662187511528 5000K 277-480V 100000lm 20˚ IK-GSFL-800W-50K-HV-GR-20D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187541013 5000K 277-480V 100000lm 25˚ IK-GSFL-800W-50K-HV-GR-25D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540979 5000K 277-480V 100000lm 25˚ IK-GSFL-800W-50K-HV-GR-25D-SH-10SP-FM Download Flood Mount Bracket
800W 662187540931 5000K 277-480V 100000lm 25˚ IK-GSFL-800W-50K-HV-GR-25D-SH-10SP-TAM Download Top Arm Mount Bracket
800W 662187541020 5000K 277-480V 100000lm 40˚ IK-GSFL-800W-50K-HV-GR-40D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
800W 662187540986 5000K 277-480V 100000lm 40˚ IK-GSFL-800W-50K-HV-GR-40D-SH-10SP-FM Download Flood Mount Bracket
800W 662187540948 5000K 277-480V 100000lm 40˚ IK-GSFL-800W-50K-HV-GR-40D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W + 300W RGBW 662187541501 RGBW 200-480V 150000lm 40˚ IK-GSFL-1200W-RGBW-HV-GR-40D-SH-10SP-FMED-DMX On request Flood Mount Bracket with External Driver Box
1200W + 300W RGBW 662187541464 RGBW 200-480V 150000lm 40˚ IK-GSFL-1200W-RGBW-HV-GR-40D-SH-10SP-FM-DMX On request Flood Mount Bracket
1200W + 300W RGBW 662187541426 RGBW 200-480V 150000lm 40˚ IK-GSFL-1200W-RGBW-HV-GR-40D-SH-10SP-TAM-DMX On request Top Arm Mount Bracket
1200W 662187541242 5000K 120-277V 150000lm 15˚ IK-GSFL-1200W-50K-MV-GR-15D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541204 5000K 120-277V 150000lm 15˚ IK-GSFL-1200W-50K-MV-GR-15D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541167 5000K 120-277V 150000lm 15˚ IK-GSFL-1200W-50K-MV-GR-15D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541259 5000K 120-277V 150000lm 20˚ IK-GSFL-1200W-50K-MV-GR-20D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541211 5000K 120-277V 150000lm 20˚ IK-GSFL-1200W-50K-MV-GR-20D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541174 5000K 120-277V 150000lm 20˚ IK-GSFL-1200W-50K-MV-GR-20D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541266 5000K 120-277V 150000lm 25˚ IK-GSFL-1200W-50K-MV-GR-25D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541228 5000K 120-277V 150000lm 25˚ IK-GSFL-1200W-50K-MV-GR-25D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541181 5000K 120-277V 150000lm 25˚ IK-GSFL-1200W-50K-MV-GR-25D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541273 5000K 120-277V 150000lm 40˚ IK-GSFL-1200W-50K-MV-GR-40D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541235 5000K 120-277V 150000lm 40˚ IK-GSFL-1200W-50K-MV-GR-40D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541198 5000K 120-277V 150000lm 40˚ IK-GSFL-1200W-50K-MV-GR-40D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541365 5000K 277-480V 150000lm 15˚ IK-GSFL-1200W-50K-HV-GR-15D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541327 5000K 277-480V 150000lm 15˚ IK-GSFL-1200W-50K-HV-GR-15D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541280 5000K 277-480V 150000lm 15˚ IK-GSFL-1200W-50K-HV-GR-15D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541372 5000K 277-480V 150000lm 20˚ IK-GSFL-1200W-50K-HV-GR-20D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541334 5000K 277-480V 150000lm 20˚ IK-GSFL-1200W-50K-HV-GR-20D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541297 5000K 277-480V 150000lm 20˚ IK-GSFL-1200W-50K-HV-GR-20D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541389 5000K 277-480V 150000lm 25˚ IK-GSFL-1200W-50K-HV-GR-25D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541341 5000K 277-480V 150000lm 25˚ IK-GSFL-1200W-50K-HV-GR-25D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541303 5000K 277-480V 150000lm 25˚ IK-GSFL-1200W-50K-HV-GR-25D-SH-10SP-TAM Download Top Arm Mount Bracket
1200W 662187541396 5000K 277-480V 150000lm 40˚ IK-GSFL-1200W-50K-HV-GR-40D-SH-10SP-FMED Download Flood Mount Bracket with External Driver Box
1200W 662187541358 5000K 277-480V 150000lm 40˚ IK-GSFL-1200W-50K-HV-GR-40D-SH-10SP-FM Download Flood Mount Bracket
1200W 662187541310 5000K 277-480V 150000lm 40˚ IK-GSFL-1200W-50K-HV-GR-40D-SH-10SP-TAM Download Top Arm Mount Bracket
