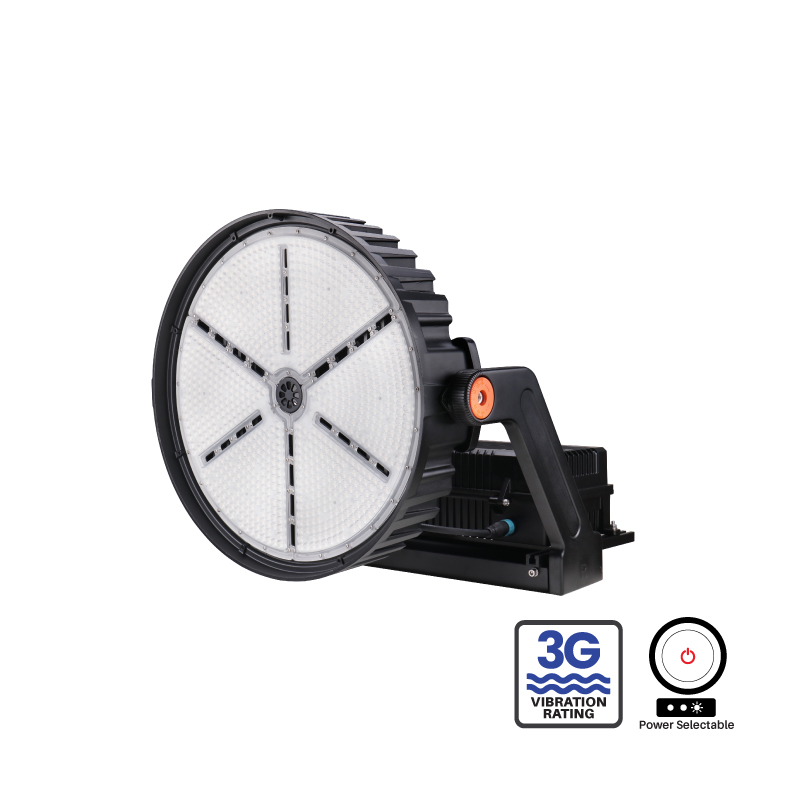

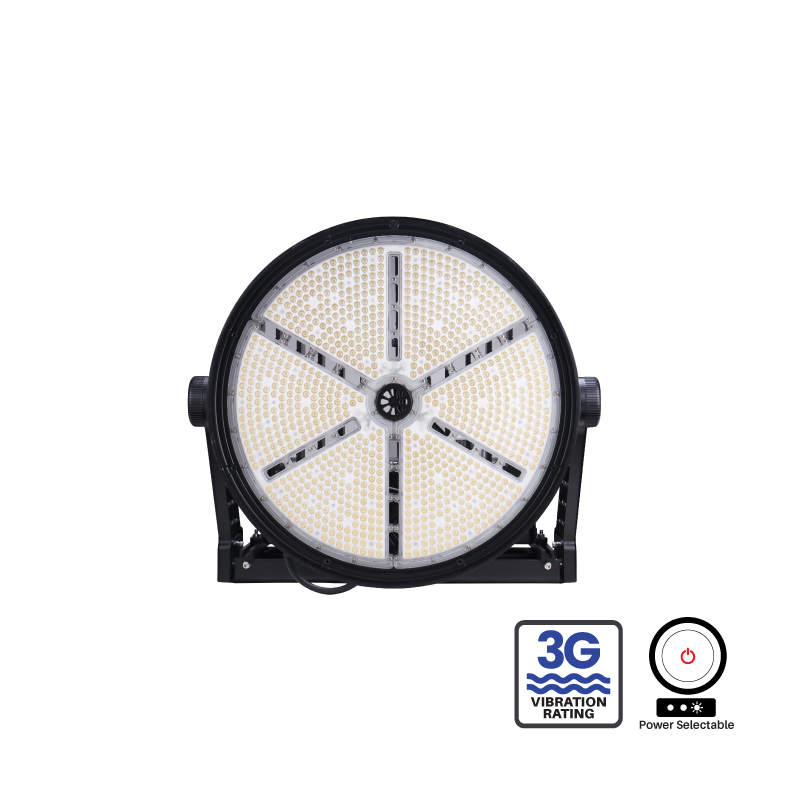

Dynamo 4 Pro
Stadium Flood Light

IKIO’s Dynamo 4 Pro Stadium Flood Light comes with power selectability, allowing you to control light output as per your unique project needs. Its advanced cooling system ensures efficient heat dissipation, while 3.4 ft² EPA-rated build minimizes wind resistance, enabling sustained operation even in demanding environments. Whether for a high-stakes game or a local community event, this stadium light guarantees optimal visibility and an enhanced spectator experience.

PRODUCT FEATURES

• Power selectability (750W-1000W-1200W) allows you to tailor lighting levels,
  providing flexibility in applications.
• Delivers up to 165600lm for powerful and uniform lighting across large arenas.
• With an IP65 rating, the luminaire is built for durable performance in wet locations.
• 3.4 ft² EPA minimizes wind resistance, reducing stress on the fixture and adding stability.
• 0-10V dimming capability offers precise control over light intensity for desired brightness.
• Compatible with DMX control, allowing dynamic behaviors such as color-changing, grouping,
  scheduling, and remote operation.
• Equipped with 6kV + 10kV surge protection as standard, with an available upgrade to 20kV
  for greater reliability during fluctuations.
• Visor and laser pointer options available.

Product Details
Efficacy (lm/W) 138lm/W
Power Selectable (W) 750W-1000W-1200W
CCT (K) 5000K
CRI 70+
Voltage AC 120-277V, 277-480V 50/60 Hz
Distribution Type I, Very Short
Dimming 0-10V Dimming
Operating Temperature -40ºF ~ +113ºF
IP Rating IP65
Housing Die-cast Aluminum
Beam Angle 30°
EPA 3.4ft²
Technical Resources
Product Sheet
LM79 Reports
SKU Details

Power (Selectable)  SKU Number Efficacy CCT Voltage Lumen Output Beam angle Qualified Product Code Ordering Part Number Technical Data Sheet IES File
750W-1000W-1200W 662187507569 138lm/W 5000K 277-480V 103500lm-138000lm-165600lm 30° DLC (In-Process) IK-SP06B-1200/1000/750W-HV-50K-BL Download Download
750W-1000W-1200W 662187507552 133lm/W 5000K 120-277V 99750lm-133000lm-159600lm 30° DLC (In-Process) IK-SP06B-1200/1000/750W-MV-50K-BL Download Download
