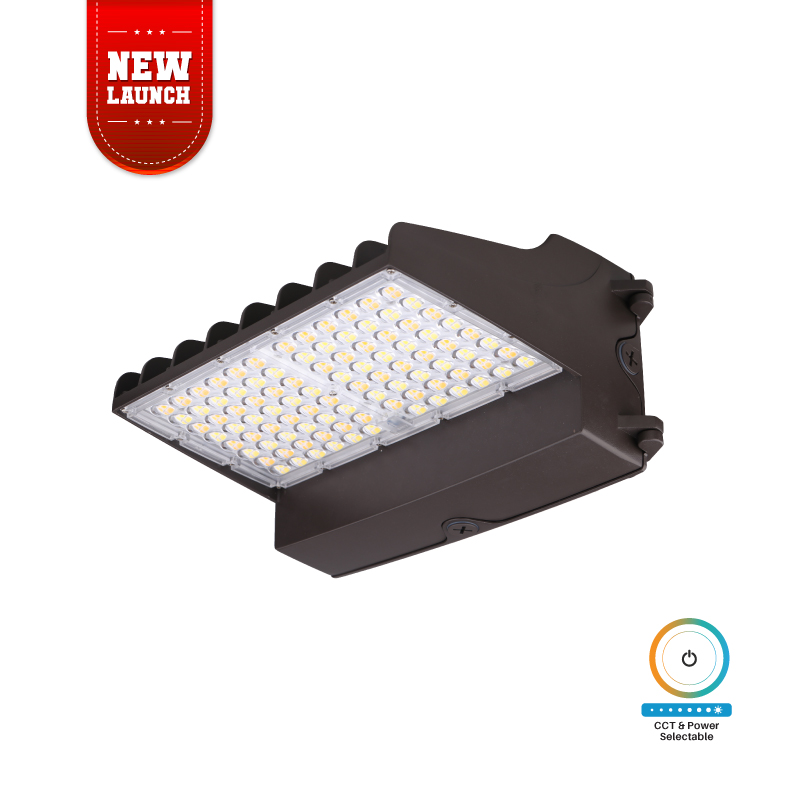

Delphi Wall Pack (Full Cutoff)
CCT & Power Selectable
Delphi Full Cutoff Wall Pack, a highly efficient LED Lighting solution, is designed with superior light controls as it allows its users to switch to different CCTs and wattages to suit their requirements and enables easy application in multiple areas. The rugged housing of this luminaire offers advanced thermal management & protection against outdoor environments without compromising with its aesthetics.
PRODUCT FEATURES
• CCT & power selectable capabilities.
• Excellent light output with even and wide distribution.
• Saves greater energy over the traditional lighting fixtures.
• Suitable for operation in low working temperature.
• Moisture & dust resistant.
• Durable die-cast aluminum housing.
• Rugged construction which makes it ideal for use in outdoor spaces.
Product Details
| Efficacy (lm/W) | 123.21 lm/W |
| Power (W) | 40 W-60 W-80 W-100 W |
| CCT (K) | 3000 K - 4000 K - 5000 K |
| CRI | 72.8 |
| Voltage | AC 120-347 V 50/60 Hz |
| Beam Angle | 96.1° |
| Dimming | Continuous Dimming to 10% or Below |
| Operating Temperature | -22° F to +113° F |
| IP Rating | IP65 |
| Housing | Die Cast Aluminum |
Technical Resources
Product Sheet
LM79 Report
Installation Instructions
SKU Details
| Power | SKU Number | CCT | Voltage | Type | Lumen Output | Beam Angle | Finish | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 W - 60 W - 80 W - 100 W | 662187547008 | 3000K - 4000K - 5000K | AC 120-347 V | Full Cutoff | 5600 lm - 8400 lm - 11200 lm - 14000 lm | 96.1° | Bronze | IK-WP10-0100[L;M]-[P;C;MC;PC;PSC;SC]-3CCT | IK-WP10-0100[L;M]-[P;C;MC;PC;PSC;SC]-3CCT | Download | Download |
