Delphi

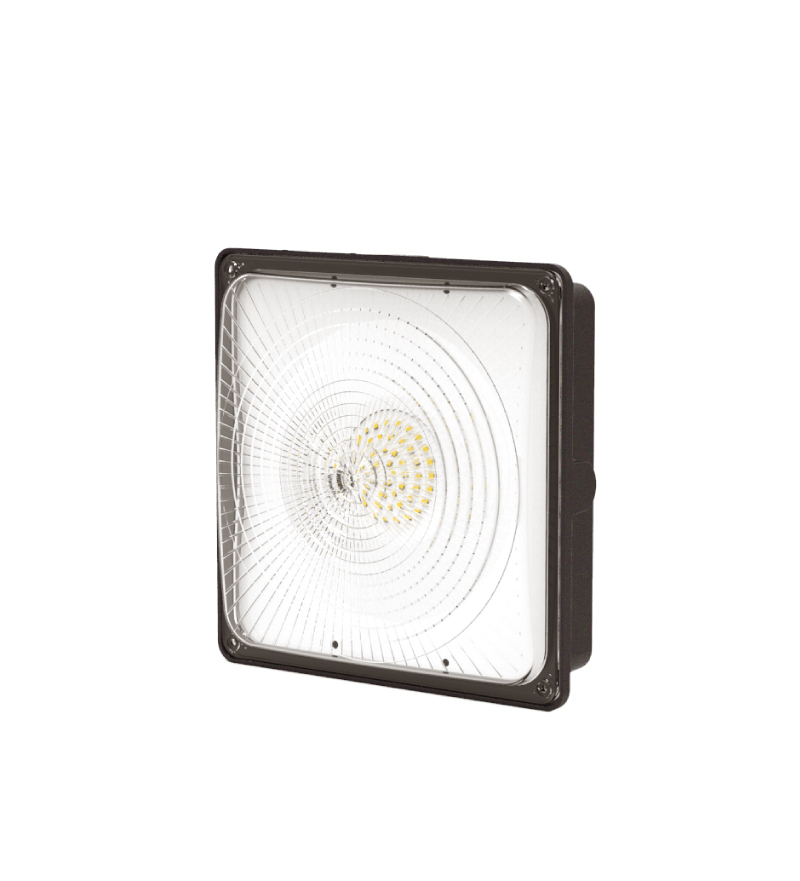

Fuel Pump Canopy Light
Delphi Fuel Pump Canopy Light promotes safety in commercial and industrial spaces while proving to be a high-performing, energy-efficient alternative to traditional lighting. It comes with CCT & power selectable technology and a low profile, which make it suitable for a variety of applications. In addition, the luminaire’s sturdy design and powder coat finish only add to its longevity and durability. The fixture supports both pendant and surface mounting.
PRODUCT FEATURES
- Low-profile, stylish design with durable powder coat finish.
- CCT & power selectable option ensures flexibility for varied applications.
- Suitable for ambient operating temperature.
- Meets the FCC Part 15, Part B, Class A standards for conducted and radiated emissions.
- Comes with dimming capability (0-10 V).
- Surge-protected and IP65 rated for wet locations.
Product Details
| Efficacy (lm/W) | Up to 123lm/W |
| Power Selectable (W) |
Variant 1: 30W-40W-49.8W Variant 2: 30W-40W-50.8W |
| CCT Selectable (K) | 3000K-4000K-5000K |
| CRI | 74 |
| Voltage | AC 120-347V 50/60 Hz, AC 120-277V 50/60 Hz |
| Dimming | Continuous Dimming Above 10% |
| Operating Temperature | -40°F to +122°F |
| IP Rating | IP65 |
| Housing | Aluminum |
Technical Resources
Product Sheet
Installation Instructions
SKU Details
| Power | SKU Number | Efficacy | CCT | Voltage | Lumen Output | Finish | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|
| 30 W-40 W-50.8 W | 662187479583 | 124.46 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 3900 lm-4978.4 lm-6320 lm | Bronze | IK-CPSL-0050W-CS-[S;Blank]-[BR;WH;BK;Blank] | IK-CPSL-0050W-CS-[S;Blank]-[BR;WH;BK;Blank] | Download | Download |
| 30 W-40 W-49.8 W | 662187482064 | 123.21 lm/W | 3000 K-4000 K-5000 K | 120-347 V | 3900 lm-4928.4 lm-6135 lm | Bronze | IK-CPSL-H-0050W-CS-[S;Blank]-[BR;WH;BK;Blank] | IK-CPSL-H-0050W-CS-[S;Blank]-[BR;WH;BK;Blank] | Download | Download |
