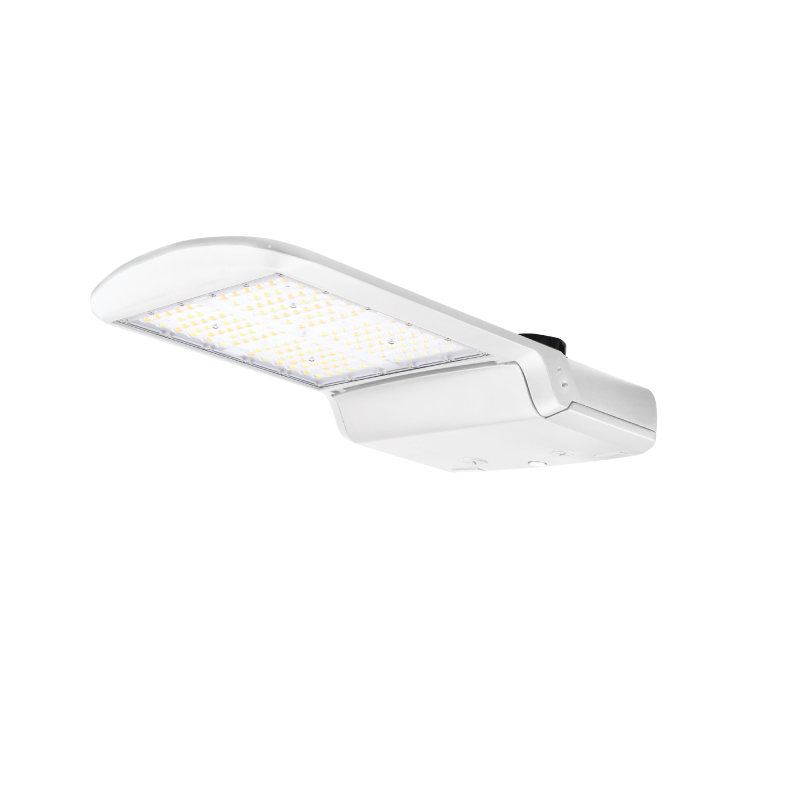

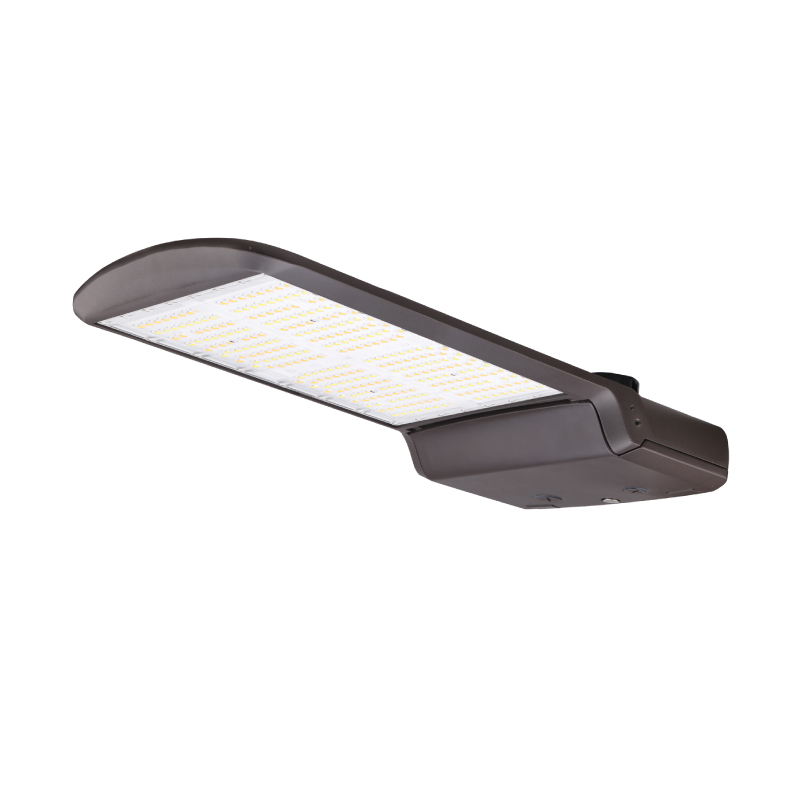

Areon
Area Luminaire
IKIO’s Areon Area Luminaire combines architectural form and versatility to make an excellent lighting solution for new construction or retrofit applications. Its CCT & Power selectable capability, when added to features like custom-engineered optics, dimming options, and high-output LEDs, delivers the highest levels of convenience to users while resulting in clear, uniform illumination and lasting performance.
PRODUCT FEATURES
- CCT & power selectable capability.
- Superior efficacy with high color rendering.
- Suitable for wet locations (IP65 rated).
- Instant start with no flickering or humming.
- Easy-to-install design with a rugged die-cast aluminum housing.
Product Details
| Efficacy (lm/W) | Up to 152 lm/W |
| Power Selectable (W) |
Option 1 : 150 W-100 W-70 W Option 2 : 300 W-240 W-200 W-150 W |
| CCT Selectable (K) | 3000 K-4000 K-5000 K |
| CRI | 72-73-71 |
| Voltage | AC 100-277 V, 277-480 V 50/60 Hz |
| Distribution | Type 3 |
| Dimming | 0-10 V Dimming |
| Operating Temperature | -40° F to +122° F |
| IP Rating | IP65 |
| Housing | Die-cast Aluminum |
Technical Resources
Product Sheet
Installation Instructions
SKU Details
| Max Power | SKU Number | Efficacy | CCT (Selectable) | Voltage | Lumen Output | Finish | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|
| 151.22 W | 662187482453 | 133.98 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 9378.6 lm-13398 lm-20261 lm | Bronze | IK-SBSLG2-150W-30/40/50K-MV-BR | IK-SBSLG2-150W-30/40/50K-MV-D | Download | Download |
| 151.22 W | 662187482460 | 133.98 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 9378.6 lm-13398 lm-20261 lm | White | IK-SBSLG2-150W-30/40/50K-MV-WH | IK-SBSLG2-150W-30/40/50K-MV-D | Download | Download |
| 305.93 W | 662187482477 | 129.59 lm/W | 3000 K-4000 K-5000 K | 100-277 V | 19438.5 lm-25918 lm-31101.6 lm-39646.7 lm | Bronze | IK-SBSLG2-300W-30/40/50K-MV-BR | IK-SBSLG2-300W-30/40/50K-MV-D | Download | Download |
| 305.93 W | 662187482484 | 129.59 lm/W | 3000 K-4000 K-5000 K | 100-277 V | 19438.5 lm-25918 lm-31101.6 lm-39646.7 lm | White | IK-SBSLG2-300W-30/40/50K-MV-WH | IK-SBSLG2-300W-30/40/50K-MV-D | Download | Download |
| 307.27 W | 662187482491 | 131.96 lm/W | 3000 K-4000 K-5000 K | 277-480 V | 19794 lm-26392 lm-31670.4 lm-40547.2 lm | Bronze | IK-SBSLG2-300W-30/40/50K-HV-BR | IK-SBSLG2-300W-30/40/50K-HV-D | Download | Download |
| 307.27 W | 662187482514 | 131.96 lm/W | 3000 K-4000 K-5000 K | 277-480 V | 19794 lm-26392 lm-31670.4 lm-40547.2 lm | White | IK-SBSLG2-300W-30/40/50K-HV-WH | IK-SBSLG2-300W-30/40/50K-HV-D | Download | Download |
