Ace

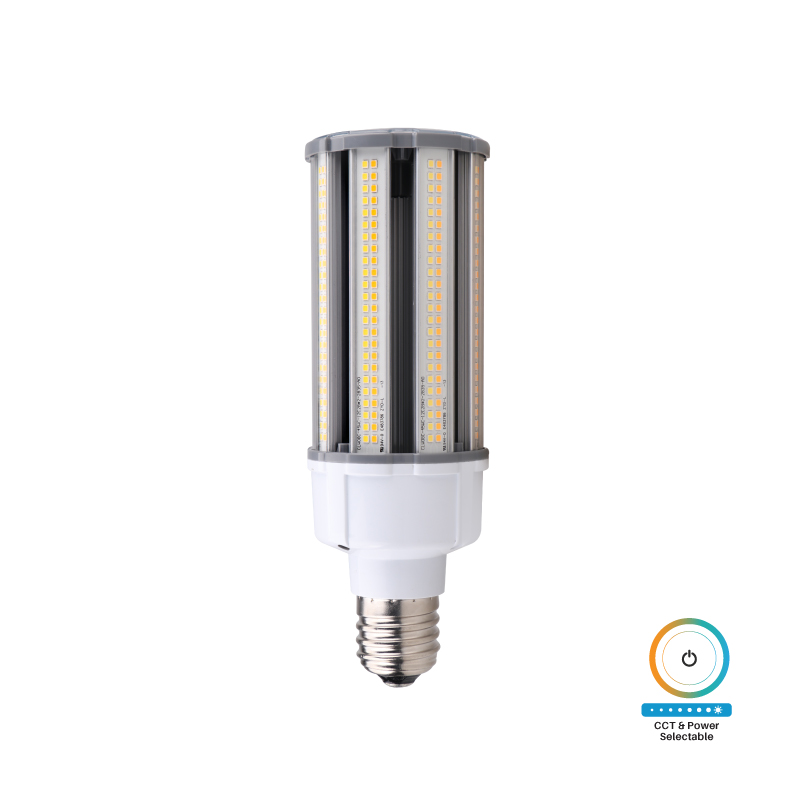

Corn Bulb
IKIO’s ACE Corn Bulb is uniquely designed to switch between different color temperatures for flexibility in all types of commercial applications. With features like a big heat sink for effective thermal dissipation, dimming capability, clear or frosted cover options, and surge protection, ACE can be great for retrofitting existing CFL and HID fixtures for a hassle-free lighting system upgrade.
PRODUCT FEATURES
- CCT & power selectable capability.
- Superior efficacy of up to 155 lm/W.
- Soft & uniform light output with high CRI.
- Big heat sink for effective heat dissipation.
- Meets 6 kV surge immunity level.
- Continuous or segmented dimming options available.
Product Details
| Efficacy (lm/W) | Up to 155 lm/W |
| Power Selectable (W) |
Option 1: 54 W-45 W-36 W Option 2: 120 W-100 W-80 W |
| CCT Selectable (K) | 3000 K-4000 K-5000 K |
| CRI | 80+ |
| Voltage | AC 120-277 V 50/60 Hz |
| Beam Angle | 285° |
| Dimming | 0-10 V Dimming |
| Operating Temperature | -40° F to +122° F |
| IP Rating | IP64 |
| Housing | Aluminum + Polycarbonate |
Technical Resources
Product Sheet
Installation Instructions
SKU Details
| Max Power | SKU Number | Efficacy | CCT (Selectable) | Voltage | Lumen Output | Beam angle | Finish | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 54 W | 662187482439 | 135.35 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 4872.6 lm-6090.7 lm-7309 lm | 285° | White | IK-CRL2-54W-30/40/50K-E | IK-CRL2-54W-30/40/50K-[E;EX] | Download | Download |
| 122.33 W | 662187482446 | 134.33 lm/W | 3000 K-4000 K-5000 K | 120-277 V | 10746.4 lm-13433 lm-16432 lm | 285° | White | IK-CRL2-120W-30/40/50K-E | IK-CRL2-120W-30/40/50K-[E;EX] | Download | Download |
